### Contents of Doc 20, Intelligence Example

`Doc 20, Intelligence Example Slide # 1`

## Distribute System Intelligence

A Tree Example

Problem:
Implement a binary search tree with operations:
put( int key, Object value )
Puts the specified value into the tree, using the specified key.
get( int key )
Gets the object associated with the specified key in the tree.
toString()
Returns a string representation of the tree
( leftSubtree root rightSubtree )
((3)5((6)8(9)))
`Doc 20, Intelligence Example Slide # 2`

### Solution 1 SmartTree, DumbNode

DumbNode
```
class DumbNode
{
protected DumbNode left = null;
protected DumbNode right = null;

protected int key;
protected Object value;

public DumbNode( int key, Object value )
{
this.key = key;
this.value = value;
}

}
```
SmartTree Fields
```package sdsu.trees;

import java.util.*;

public class SmartTree
{
protected DumbNode root = null;

// Methods shown later
}

Doc 20, Intelligence Example Slide # 3
```
SmartTree MethodsHelper Function
```
/**
* If keyToFind is in the tree rooted at startNode, then return node
* containing keyToFind.
* Otherwise return the node that would be parent of a node containing
* keyToFind.
*/

protected DumbNode getNode( int keyToFind, DumbNode startNode )
{
DumbNode current = startNode;
DumbNode parent = null;
DumbNode nextNode = null;

while ( current != null )
{
if ( keyToFind < current.key )
nextNode = current.left;
else if (keyToFind > current.key  )
nextNode = current.right;
else
return current;
parent = current;
current = nextNode;
}

return parent;
}
```

`Doc 20, Intelligence Example Slide # 4`
SmartTree Methodsget
```/**
* Gets the object associated with the specified key in the tree.
* If key is not in tree return null
*/

public Object get( int key )
{
if ( root == null )
return null;

DumbNode foundNode = getNode( key, root );

if ( foundNode.key  ==  key )
return foundNode.value;
else
return null;
}
```

`Doc 20, Intelligence Example Slide # 5`
SmartTree Methodsput
```/**
* Puts the specified element into the tree, using the specified key.
*/

public Object put( int key, Object value )
{
if ( root == null )
{
root = new DumbNode( key, value );
return null;
}

DumbNode foundNode = getNode( key, root );

if ( foundNode.key  ==  key )
{
// Replace existing value
Object oldValue = foundNode.value;
foundNode.value = value;
return oldValue;
}
else   //Key not in tree, add new node
{
if ( key > foundNode.key )
foundNode.right = new DumbNode( key, value );
else
foundNode.left = new DumbNode( key, value );

return null;
}
}
```

`Doc 20, Intelligence Example Slide # 6`
SmartTree MethodsPreorder Traversal
```
```
1) Print "(" then Visit left subtree
2) Print node
3) Visit right subtree, then print ")"

Applying rule we get:
```(   left subtree   5   right subtree   )
(   (3)   5   (   left subtree   8   right subtree    )   )
(   (3)   5   (    (6)   8   (9)   )   )
Doc 20, Intelligence Example Slide # 7
```
SmartTree MethodstoString() Helper Class

Need to store path of nodes visited on a stack with which visit we are on: first, second or third

```public class TraversalInfo
{
public DumbNode node;
public int visitNumber;

public TraversalInfo( DumbNode nodeTraversed, int visitNumber )
{
node = nodeTraversed;
this.visitNumber = visitNumber;
}

}

```
Constants for toString()
```private final static int FIRST = 1;
private final static int SECOND = 2;
private final static int THIRD = 3;

Doc 20, Intelligence Example Slide # 8
```
SmartTree MethodstoString(): Simple Algorithm
```
public String toString()
{
StringBuffer treeString = new StringBuffer();
TraversalInfo currentLocation;

Stack visited = new Stack();
visited.push( new TraversalInfo( root, FIRST ) );

while ( visited.empty() != true )
{
currentLocation = (TraversalInfo) visited.pop();

switch ( currentLocation.visitNumber )
{
case FIRST:
treeString.append( "(" );
firstVisit( visited, currentLocation );
break;

case SECOND:
treeString.append( currentLocation.node.key );
secondVisit( visited, currentLocation );
break;

case THIRD:
treeString.append( ")" );
break;
}
}
return treeString.toString();
}
Doc 20, Intelligence Example Slide # 9
```
SmartTree MethodstoString(): continued
```

protected void firstVisit( Stack visited, TraversalInfo currentLocation )
{
DumbNode nextnode;
currentLocation.visitNumber = SECOND;
visited.push( currentLocation );

if ( currentLocation.node.left != null )
{
nextnode = currentLocation.node.left;
visited.push( new TraversalInfo( nextnode, FIRST )  );
}
}

protected void secondVisit( Stack visited,
TraversalInfo currentLocation )
{
DumbNode nextnode;
currentLocation.visitNumber = THIRD;
visited.push( currentLocation );

if ( currentLocation.node.right != null )
{
nextnode = currentLocation.node.right;
visited.push( new TraversalInfo( nextnode, FIRST )  );
}
}
Doc 20, Intelligence Example Slide # 10
```

### Solution 2 DumbTree, BSTNode

```
1) Let the nodes do some work

2) Add some nil leaves to eliminate some cases

```

Class StructureInheritance

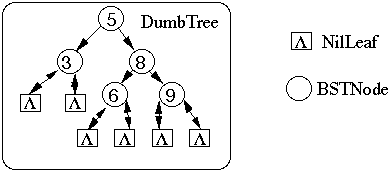

Runtime Structure

`Doc 20, Intelligence Example Slide # 11`

#### DumbTree

```package sdsu.trees;

public class DumbTree
{
protected TreeNode root = null;

public Object get( int key )
{
if ( root == null )
return null;

return root.getNode( key ).value();
}

public Object put( int key, Object value )
{
if ( root == null )
{
root = new BSTNode( key, value );
return null;
}

return root.getNode( key ).put( key, value );
}

public String toString()
{
return root.toString();
}
}

Doc 20, Intelligence Example Slide # 12
```

#### TreeNode

```abstract class TreeNode
{

/**
* Puts the specified key & value in this node
*/
abstract public Object put( int key, Object value );

/**
* Return the value of the TreeNode
*/
abstract public Object value();

/**
* If keyToFind is in the subtree rooted at this node, then return
* node containing keyToFind.
* Otherwise return the NilLeaf that should contain keyToFind
*/
abstract public TreeNode getNode( int key );

/**
* Return an ascii representation of tree rooted at this node
*/
abstract public String toString();
}

```

There is no common code or methods between BSTNode and NilLeaf

TreeNode could be either an interface or an abstract class

`Doc 20, Intelligence Example Slide # 13`

#### BSTNode

```class BSTNode extends TreeNode
{
protected TreeNode left;
protected TreeNode right;

protected int key;
protected Object value;

public BSTNode( int key, Object value )
{
this.key = key;
this.value = value;
left = new NilLeaf( this );
right = new NilLeaf( this );
}

/**
* Return the value of the TreeNode
*/
public Object value()
{
return value;
}

/**
* Return an ascii representation of tree rooted at this node
*/
public String toString()
{
return "(" + left.toString()  + key +  right.toString() + ")";
}

Doc 20, Intelligence Example Slide # 14
```
BSTNode Continued
```
{
Object oldValue = value;
return oldValue;
}

/**
* If keyToFind is in the subtree rooted at this node, then return
* node containing keyToFind.
* Otherwise return the NilLeaf that should contain keyToFind
*/
public TreeNode getNode( int keyToFind )
{
if ( keyToFind < key )
return left.getNode( keyToFind );
else if ( keyToFind > key )
return right.getNode( keyToFind );
else
return this;
}

/**
* Puts indicated key and value in proper child of this node
*/
{
if ( keyToAdd < key )
else if ( keyToAdd > key )
}
}
Doc 20, Intelligence Example Slide # 15
```

#### NilLeaf

```class NilLeaf extends TreeNode
{
protected BSTNode parent;

public NilLeaf( BSTNode parent )
{
this.parent = parent;
}

public Object put( int key, Object value )
{
parent.putAsChild( key, value );
return null;
}

public Object value()
{
return null;
}

public TreeNode getNode( int key )
{
return this;
}

public String toString()
{
return "";
}
}
Doc 20, Intelligence Example Slide # 16
```

#### How Does this Work?

```DumbTree example = new DumbTree();
example.put( 5, null );
example.put( 3, null );
example.put( 8, null );

```
```// Now add a 1
```
```example.put( 1, null );

// In DumbTree's put( 1, null ) method does:

return root.getNode( 1 ).put( 1, null );

```
```
// in BSTNode with key 5 method getNode( 1 ) does:

if ( 1 < 5 )
return left.getNode( 1 );
else if ( 1 > 5 )
return right.getNode( 1 );
else
return this;
```

`Doc 20, Intelligence Example Slide # 17`
Example Continued
```// in BSTNode with key 3 method getNode( 1 ) does:

if ( 1 < 3 )
return left.getNode( 1 );
else if ( 1 > 3 )
```
```// in NilNode method getNode( 1 ) does:
```
```      return this;
```
```// in BSTNode with key 3 method getNode( 1 ) does:

if ( 1 < 3 )
return left.getNode( 1 );
Doc 20, Intelligence Example Slide # 18
```
Example Continued
```// in BSTNode with key 5 method getNode( 1 ) does:

if ( 1 < 5 )
return left.getNode( 1 );
```
```// In DumbTree's put( 1, null ) method does:

return root.getNode( 1 ).put( 1, null );

```
```// in NilNode method put( 1, null ) does:

parent.putAsChild( 1, null );
return null;

Doc 20, Intelligence Example Slide # 19
```
Example Continued
```
```
```
// in BSTNode with key 3 method putAsChild( 1, null ) does:

if ( 1 < 3 )
left = new BSTNode( 1, null );
else if ( 1 > 3 )

```
```// in NilNode method put( 1, null ) does:

parent.putAsChild( 1, null );
return null;
```
```// In DumbTree's put( 1, null ) method does:

return root.getNode( 1 ).put( 1, null );
Doc 20, Intelligence Example Slide # 20
```

### Comparison

 Metric SmartTree DumbTree LOC[1] 60 36 Number of classes 3 4 Number of methods 6[2] 18[3] LOC/method 10 2

SmartTree is centralized

DumbTree distributes the logic in the tree structure

`Doc 20, Intelligence Example Slide # 21`
Issue

#### Avoid Case (and if) Statements

Implementation that avoids if statements by sending a message to an object

NilLeaf returns a null string;
```   public String toString()
{
return "(" + left.toString()  + key +  right.toString() + ")";
}
```

Implementation that uses if statements
```   public String toString()
{
String treeRepresentation;

treeRepresentation = "(";

if ( left != null )
treeRepresentation = treeRepresentation + left.toString();

treeRepresentation = treeRepresentation + left.toString();

if ( right != null )
treeRepresentation = treeRepresentation + right.toString();

treeRepresentation = treeRepresentation + ")";

return treeRepresentation;
}
Doc 20, Intelligence Example Slide # 22
```

#### Issues: Performance

NilLeaf doubles the space requirement
DumbTree's recursive like search requires considerable stack space
DumbTree's recursive like search is slower than SmartTree's iterative search

NilLeaf doubles the space requirement

True, but one only needs NilLeaf per tree

Recursion requires considerable stack space

This is true of any recursive solution

Simulations indicate Metroworks Java implementation runs out of stack space after about 8,200 recursive calls to the same method

See AVLTree

`Doc 20, Intelligence Example Slide # 23`
DumbTree is slower than SmartTreePerformance Test

Insert ints from 1 to N into each tree

Look up each int once

Times are measured on a PowerMac 7100/80

Times are in milliseconds
Timing Results
 N -> 400 800 1600 SmartTree create 264 1064 4342 DumbTree create 314 1290 5681 SmartTree find all 261 1049 4197 DumbTree find all 272 1193 5370

`Doc 20, Intelligence Example Slide # 24`
More Timing Results

 N -> 400 800 1600 SmartTree create 264 1064 4342 DumbTree create 314 1290 5681 DumbAVLTree create 46 94 196 Hashtable create 42 82 165 Opt. Hashtable create 25 57 102 SmartTree find all 261 1049 4197 DumbTree find all 272 1193 5370 DumbAVLTree find all 11 23 50 Hashtable find all 30 61 127 Opt. Hashtable find all 14 27 54

SmartTree is a binary search tree using iterative search

DumbTree is a binary search tree using recursive search

DumbAVLTree is an AVL tree using recursive search

Hashtable is Java's standard Hashtable with methods synchronized

Opt. Hashtable is Java's standard Hashtable with synchronization removed
