CS 635: Advanced Object-Oriented Design & Programming

---

Doc 11, Motivating Creational Patterns Slide # 2

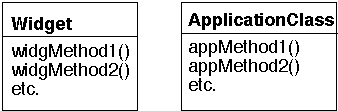

Motivating Creational Patterns

class ApplicationClass   {
   Widget a;
   Widget b;

   public appMethod1()   {
      Widget d = new Widget();
      d.widgetMethod1();
      blah;
      Widget e = new Widget();
      blah;
   }

   public appMethod2()   {
      blah;
      Widget f = new Widget();
      f.widgetMethod1();
      more blah;
      Widget g = new Widget();
      blah;
   }
   etc.
Doc 11, Motivating Creational Patterns Slide # 3
Variation

We can modify the internal Widget code without modifying
the ApplicationClass


What happens when we discover a new widget and would
like to use in the ApplicationClass?


Note this is a hokey professor example, in a reality
variations of a Widget may be handled by parameters to a
single Widget class, not by subclassing it.



Widget and ApplicationClass are coupled in several ways



ApplicationClass knows the Widget interface

ApplicationClass explicitly uses the Widget Type

ApplicationClass explicitly creates new Widgets in
many locations

Doc 11, Motivating Creational Patterns Slide # 4
Apply "Program to an Interface"



class ApplicationClass   {
   AbstractWidget a;
   AbstractWidget b;

   public appMethod1()   {
      AbstractWidget d = new Widget();
      d.widgetMethod1();
      blah;
      AbstractWidget e = new Widget();
      blah;
  }

 etc.
}

But we still have hard coded which widget to create!
Doc 11, Motivating Creational Patterns Slide # 5
Solution 1 - Use a (Virtual ) Factory Method



class ApplicationClass   {
   AbstractWidget a;
   AbstractWidget b;

   // If C+ make this a virtual function and use pointers
   // to ApplicationClass object
   public AbstractWidget createWidget() {
      return new Widget();
   }

   public appMethod1()   {
      AbstractWidget d = createWidget();
      d.widgetMethod1();
      blah;
      AbstractWidget e = createWidget();
      blah;
   }
   etc.
}

class ApplicationClassB   extends ApplicationClass{

   public AbstractWidget createWidget() {
      return new WidgetB();
   }
}

Elsewhere:

ApplicationClass test = new ApplicationClassB();
test.appMethod1();
Doc 11, Motivating Creational Patterns Slide # 6

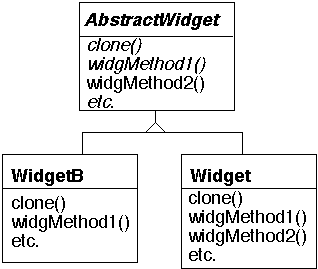

Solution 2 - Clone a Prototype



Provide the Widgets with a clone method that will make
a copy of an existing Widget object







class Widget {
   int data;

   public Widget clone() {
      Widget aCopy = new Widget();
      aCopy.data = data;
      return aCopy;
   }
}

Using Clone method



Widget  original = new Widget();
Widget anIndependentCopy = original.clone();
Doc 11, Motivating Creational Patterns Slide # 7
Using the clone in ApplicationClass



class ApplicationClass   {
   AbstractWidget a;
   AbstractWidget b;
   AbstractWidget prototype;

   public ApplicationClass(AbstractWidget cloneMe ) {
      prototype = cloneMe;
   }

   public appMethod1()   {
      AbstractWidget d = prototype.clone();
      d.widgetMethod1();
      blah;
      AbstractWidget e = prototype.clone();
      blah;
   }

   etc.
}

Elsewhere:

ApplicationClass test =
   new ApplicationClass( new Widget() );

ApplicationClass testB =
   new ApplicationClass( new WidgetB() );
Doc 11, Motivating Creational Patterns Slide # 8
More Variation



What if ApplicationClass uses Widgets, Cogs, Wheels,
Gaskets, Gears, Gismos, ThingABobs, and Gadgets

Each one of theses are separate classes and each one
has subclasses

Further assume that there are restrictions on what type
of Widget can be used with which type of Cog, etc.



Factory methods or Prototypes can handle Widgets,
Cogs, Wheels, Gaskets, Gears, Gismos, ThingABobs, and
Gadgets, but it get hard to insure the wrong types of
items are not used together

Doc 11, Motivating Creational Patterns Slide # 9

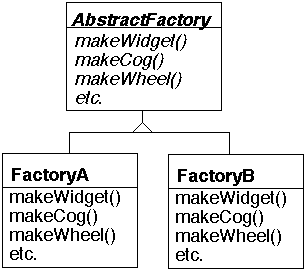

A Solution:

Put all factory methods in a Factory class







class ApplicationClass   {
   AbstractWidget a;
   AbstractCog b;
   AbstractFactory partFactory;

   public ApplicationClass(AbstractFactory aFactory) {
      partFactory = aFactory;
   }

   public appMethod1()   {
      AbstractWidget d = partFactory.makeWidget();
      d.widgetMethod1();
      blah;
      AbstractCog e = partFactory.makeCog();
   } etc.
