Contents of Doc 9, Design Patterns

References	slide # 1
Design Patterns	slide # 2
...OMT-Based Notation	slide # 4
...Design Principle 1	slide # 7
...Design Principle 2	slide # 9
...Designing for Change	slide # 10
Singleton	slide # 11
...Intent	slide # 11
...Motivation	slide # 11
...Applicability	slide # 11
...Implementation	slide # 13
...Singleton and Inheritance	slide # 14
......C++ Solution 1	slide # 15
......C++ Solution 2 - Registry	slide # 16
......Java Solution	slide # 18
...Structure	slide # 23
...Participants	slide # 23
...Collaborations	slide # 23

Doc 9, Design Patterns Slide # 1

References

Design Patterns: Elements of Resuable Object-Oriented Software, Gamma, Helm, Johnson, Vlissides, Addison-Wesley, 1995

Doc 9, Design Patterns Slide # 2

Design Patterns

What is a Pattern?

"Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice"

Christopher Alexander

A pattern has four essential elements

Pattern name

Problem

Solution

"the pattern provides an abstract description of a design problem and a general arrangement of elements solves it"

Consequences

Doc 9, Design Patterns Slide # 3

		Purpose
Scope	Creational	Structural	Behavioral
Class	Factory Method	Adapter	Interpreter Template Method
Object	Abstract factory Builder Prototype Singleton	Adapter Bridge Composite Facade Flyweight Proxy	Chain of Responsibility Command Iterator Mediator Memento State Strategy Visitor

Doc 9, Design Patterns Slide # 4

OMT-Based Notation Examples from Text

Class Diagram

Object Diagram

Inheritance

Doc 9, Design Patterns Slide # 5

OMT-Based Notation Examples from Text

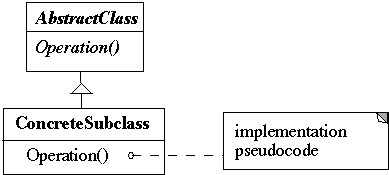

Abstract and Implementation

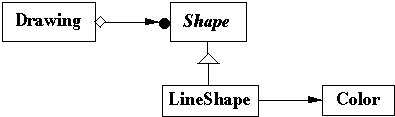

Class Relations

Creating

Doc 9, Design Patterns Slide # 6

OMT-Based Notation Examples from Text

Object Interaction

Doc 9, Design Patterns Slide # 7

Design Principle 1

Program to an interface, not an implementation

Use abstract classes (and/or interfaces in Java) to define common interfaces for a set of classes

Declare variables to be instances of the abstract class not instances of particular classes

Benefits of programming to an interface

Client classes/objects remain unaware of the classes of objects they use, as long as the objects adhere to the interface the client expects
Client classes/objects remain unaware of the classes that implement these objects. Clients only know about the abstract classes (or interfaces) that define the interface.

Doc 9, Design Patterns Slide # 8

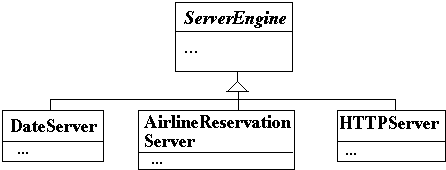

Programming to an Interface - Example

class A
     {
     DateServer myServer;

     public operation()
          { myServer.someOp(); }
     }

class B
     {
     ServerEngine myServer;

     public operation()
          { myServer.someOp(); }
     }

Doc 9, Design Patterns Slide # 9

Design Principle 2

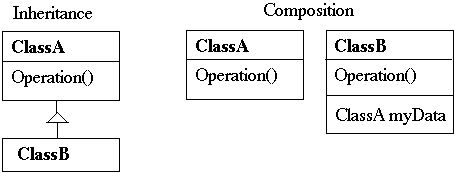

Favor object composition over class inheritance

Composition

Allows behavior changes at run time

Helps keep classes encapsulated and focused on one task

Reduce implementation dependencies

Doc 9, Design Patterns Slide # 10

Designing for Change

Some common design problems with design patterns that address the problem

Creating an object by specifying a class explicitly

Abstract factory, Factory Method, Prototype
Dependance on specific operations

Chain of Responsibility, Command
Dependence on hardware and software platforms

Abstract factory, Bridge
Dependence on object representations or implementations

Abstract factory, Bridge, Memento, Proxy
Algorithmic dependencies

Builder, Iterator, Strategy, Template Method, Visitor
Tight Coupling

Abstract factory, Bridge, Chain of Responsibility, Command, Facade, Mediator, Observer
Extending functionality by subclassing

Bridge, Chain of Responsibility, Composite, Decorator, Observer, Strategy
Inability to alter classes conveniently

Adapter, Decorator, Visitor

Doc 9, Design Patterns Slide # 11

Singleton

Intent

Insure a class only has one instance, and provide a global point of access to it

Motivation

There are times when a class can only have one instance

Applicability

Use the Singleton pattern when

there must be only one instance of a class, and it must be accessible to clients from a well-known access point
when the sole instance should be extensible by subclassing, and clients should be able to use an extended instance without modifying their code

Doc 9, Design Patterns Slide # 12
Implementation
Java

// Only one object of this class can be created
class Singleton
     {
     private static Singleton _instance = null;

     private Singleton()     { fill in the blank }

     public static Singleton getInstance()
          {
          if (  _instance == null )
                _instance = new Singleton();
          return _instance;
          }
     public void otherOperations() { blank; }
     }

class Program
     {
     public void aMethod()
          {
          X = Singleton.getInstance();
          }
     }

Doc 9, Design Patterns Slide # 13

Implementation

C++

// Only one object of this class can be created
class Singleton
     {
     private:
          static Singleton* _instance;
          void otherOperations();

     protected:
          Singleton();

     public:
          static Singleton* getInstance();
     }

 Implementation

Singleton*  Singleton::_instance = 0;

Singleton* Singleton::getInstance()
     {
     if (  _instance == 0 )
           _instance = new Singleton;
     return _instance;
     }

Doc 9, Design Patterns Slide # 14

Singleton and Inheritance

The Problem

Subclass Singleton and have Singleton return subclass objects

The Easy Part

How to get Singleton to return subclass objects

Singleton* Singleton::getInstance()
     {
     if (  _instance == 0 )
           _instance = new SingletonSubclass;
     return _instance;
     }

Doc 9, Design Patterns Slide # 15
Singleton and Inheritance
The Hard Part

How insure that Singleton has the correct subclass object

C++ Solution 1

Singleton's getInstance does the selection based on some global information such as environment or configuration file

Singleton* Singleton::getInstance()
     {
     if (  _instance == 0 )
          {
          const char* singletonStyle = getenv( "singletonStyle" );

          if ( strcmp( singletonStyle, "Left" ) == 0 )
                _instance = new SingletonLeftChild;

          else if ( strcmp( singletonStyle, "Right" ) == 0 )
                _instance = new SingletonLeftRight;

          else
                _instance = new Singleton;
          }

     return _instance;
     }

Problem: Parent class needs to be modified each time a new subclass is implemented
Doc 9, Design Patterns Slide # 16
Singleton and Inheritance
The Hard Part

C++ Solution 2 - Registry

class Singleton
     {
     private:
          static Singleton* _instance;

          static ListOfSingletonNamePairs _registry;
          static Singleton* getSingletonFromName( char* name);

     protected:
          Singleton();

     public:
          static Singleton* getInstance();
          static void Register( char* name, Singleton* registerer);
          void otherOperations();
     }

Singleton* Singleton::getInstance()
     {
     if (  _instance == 0 )
          {
          const char* singletonName = getenv( "singletonStyle" );
           _instance = getSingletonFromName(singletonName);
     return _instance;
     }

Doc 9, Design Patterns Slide # 17
The Hard Part
C++ Solution 2 - Registry Continued

How does subclass register with Singleton?

Have the subclass constructor register!

SingletonLeftChild::SingletonLeftChild()
     {
     Singleton.Register( "SingletonLeftChild", this );
     }

How is the subclass constructor called?

Create a static instance of subclass in file that contains the subclass implementation

static SingletonLeftChild theSingleton;

Doc 9, Design Patterns Slide # 18
Singleton and Inheritance

The Hard Part - Java Solution

Java does not have getenv

Java can not create a static instance of subclass in file that contains the subclass implementation

Protection level problem with constructor

Classes in the same package can access protected constructors

If subclass makes constructor private than even parent can not access child's constructor

A Solution

Use Class.forName(), static block, and registry

Keeping Singleton classes in different package from clients allows constructors to be protected

Will give solution assuming constructors must be private
Solution when constructors can be protected is simpler

Java 1.1 has a simpler solution

Doc 9, Design Patterns Slide # 19

Class.forName

class Example
     {
     public String toString()
          {
          return "This is a simple class";
          }
     }

class Test
     {
     public  static  void  main( String  args[] ) throws Exception
          {
          Class which = Class.forName( "Example" );
          Object whichOne = which.newInstance();
          System.out.println( whichOne.toString() );
          }
     }

Output
This is a simple class

Doc 9, Design Patterns Slide # 20

Java Solution part 1A

abstract class Singleton
     {
     private static Singleton _instance = null;
     private static Hashtable _registry = new Hashtable();

     public static void register( String className,
                                   Singleton registerer)
          {
          _registry.put( className, registerer );
          }

     public static Singleton getInstance()
          {
          if (  _instance == null )
               try
                    {
                    String childClassName = "Child";

                    // Insure child's static block registers child
                    Class.forName( childClassName );

                    _instance = (Singleton) _registry.get( childClassName );
                    }
               catch ( ClassNotFoundException wrongName )
                    {
                    _instance = getDefaultSingleton();
                    }

          return _instance;
          }
     }

Doc 9, Design Patterns Slide # 21

Java Solution part 1B


class Child extends Singleton
     {
     static
          {
          Singleton.register( "Child", new Child() );
          }

     private Child()
          {
          System.out.println( "child is born");
          }
     }

Doc 9, Design Patterns Slide # 22
Java Solution part 2

What replaces C/C++ getenv?

Answer - Properties

Persistent properties class. This class is basically a hashtable that can be saved/loaded from a stream. If a property is not
found, a property list containing defaults is searched. This allows arbitrary nesting.

Doc 9, Design Patterns Slide # 23

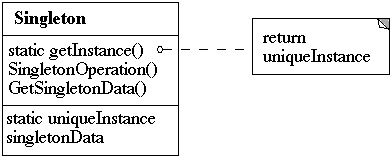

Structure

Participants

Singleton

Defines an getInstance operation that lets clients access its unique instance

May be responsible for creating its own unique instance

Collaborations

Clients access a Singleton instance solely through Singleton's getInstance operation

Consequences

Controlled access to sole instance
Reduced name space
Permits subclassing
Permits a variable number of instances
More flexible than class operations
