CS 580 Client-Server Programming

Spring Semester, 2005

Doc 5 Some GUI

Contents

Software Structure with UI & Database

Smart UI Pattern

Handling Domain Logic

Transaction Script

Table Module

Domain Model

Interface Design When You Don't Know How

Prototyping

Problems with Software Prototypes

Lo-fi or Paper Prototypes

The Kit

Build A Paper Prototype

Preparing for a Test

Conducting a Test

The Test

Evaluate the Results





Copyright ©, All rights reserved. 2005 SDSU & Roger Whitney, 5500 Campanile Drive, San Diego, CA 92182-7700 USA. OpenContent (http://www.opencontent.org/opl.shtml) license defines the copyright on this document.





References



Rettig, Marc. Interface Design When You Don't Know How, Communications of the ACM, Jan. 1992, Vol. 35, No. 1, pp. 29-34



Rettig, Marc. Prototyping for Tiny Fingers, Communications of the ACM, April. 1994, Vol. 37, No. 4, pp. 21-27



Domain-Driven Design, Eric Evans, 2004, Addison-Wesley



Patterns of Enterprise Application Architecture, Martin Fowler, 2003, Pearson Education



User Interface Design for Programmers, Joel Spolsky, 2001 http://www.joelonsoftware.com/navLinks/fog0000000247.html







Recommended Reading – Designing GUIs



User Interface Design for Programmers, Joel Spolsky, 2001



There is a printed longer version of the book. The on-line version is free and will get you started.



Design of Everyday Things, Donald Norman, 1990



This is an excellent book, is entertaining and only costs $12 new at Amazon. Anyone that designs or builds anything has to read this book.



These books do not cover the mechanics building a GUI. They do not cover which fonts and colors to use. They just get you started thinking about the really important questions related to GUI design.







Software Structure with UI & Database



Tiers – parts of program run on different machines



Layers – parts of program run on same machine





Layers



Presentation – Display of Data



Domain – Logic related to purpose of the application



Data Source – Communication with data source







Rule One



1. Keep the presentation & domain layers separate



GUI code should not contain domain logic



In simple cases different methods in one class may handle presentation and domain logic



A single method does either presentation or domain logic



Can you test the domain logic with automated unit testing







Time Date Domain Layer



public class TimeDateClient

    {

    private static final char CARRIAGE_RETURN = (char) 13;

    private static final char LINE_FEED = (char) 10;



    String server;

    int serverPort;



    public TimeDateClient(String serverNameOrIP, int port)

        {

        server = serverNameOrIP;

        serverPort = port;

        }



    public String date() throws IOException

        {

        return sendMessage("date");

        }



    public String time() throws IOException

        {

        return sendMessage("time");

        }



    public String sendMessage(String message) throws IOException

        {

        Socket serverConnection = new Socket(server, serverPort);

        writeMessage(message, serverConnection);

        byte[] result = readMessage(serverConnection);

        serverConnection.close();

        return new String(result);

        }





Time Date Domain Layer



private byte[] readMessage(Socket serverConnection) throws IOException

        {

        UpToFilterInputStream in = new UpToFilterInputStream(

                new BufferedInputStream(

                    serverConnection.getInputStream()));

        byte[] result = in.upTo(LINE_FEED);

        return result;

        }



    private void writeMessage(String message, Socket serverConnection)

            throws IOException

        {

        OutputStream out = new BufferedOutputStream(

                            serverConnection.getOutputStream());

        out.write((message + CARRIAGE_RETURN).getBytes());

        out.flush();

        }







Smart UI Pattern



“the separation of UI and domain is so often attempted and so seldom accomplished that its negation deserves a discussion”



Eric Evans, Domain-Driven Design



The Pattern



Put all business logic into user interface



Divide the application into different small user interfaces



Use relational databases as back end



Use automated UI building and visual programming tools







Advantages



1. High and immediate productivity for simple applications

2. Little training need by the developer

3. Short development time for small modules







Disadvantages



4. No reuse – code gets duplicated

5. Integration of applications difficult

6. Very difficult to add new functionality to existing application

7. Difficult to build complex applications







Handling Domain Logic1

Transaction Script



Each procedure (method) handles one request from the UI



Each database transaction handled by one procedure





Advantages

8. Simple to implement

9. Easy to follow how things get done



Disadvantages



10. No reuse – code gets duplicated

11. Very hard to handle complex operations

12. Does not scale well







Table Module



Each class represents one table in database



A request on the database is done through its table module



Advantages



13. Easily maps to the database

14. Reflects the database structure – once you know the database schema, you know the table module logic





Disadvantages



15. Difficult to handle complex domain logic

16. Database schema is reflected in application structure









Domain Model



Use objects to model the domain



Develop application with OO design



Advantages



Scales well with complexity



Disadvantages



Overly complex for simple solutions

Need to map object model to database schema (structure)







GUI Clients & Servers



GUI Clients

17. Used to get work done

18. Good when they help people get work done





Users do not care about the client-server protocol



Don’t expose the user to the client-server protocol



Build the GUI to help people accomplish a task, not just to perform the client-server protocol

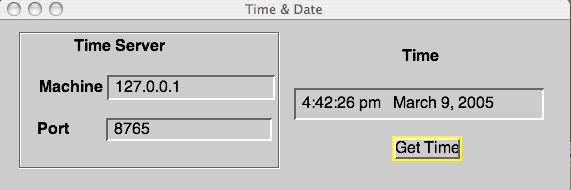

Example: Time Date Client





Protocol has two messages

19. Date

20. Time



Client has one button to get time & date





Interface Design When You Don't Know How





Basic Rule for Good Visual Design



Hire a graphic/GUI designer









Basic Rule for Almost Everything Else



Painstakingly follow established standards



All major interfaces have published detailed standards for user interface design



21. Windows

22. MacOS X

23. Java

24. GNOME

25. KDE









What Makes a Good GUI?



A user interface is well-designed when the program behaves exactly how the user thought it would





Example - Deleting a file on a Mac



Move it to the trash can!





How do you unmount floppies & external hard drives?



Move it to the trash can



But users think this will delete or erase it





Mental Models & Users



Users don’t read the manual



The more text you put on the screen the fewer people will read it



Users have a mental model of how your program works



Make sure your program fits their mental model



Users think the trash can deletes things



User Interface Standards Manual



Produce standards manual for the project



Manual should address the following:



26.     Lexical Structure

What symbols are there?



27. Syntactic Structure

How do they relate to each other?



28. Semantics

How do they relate to the things they represent?



29. Pragmatics

How do they relate to the user?





The Process



30. Plan ahead

31. Use bite-sized chunks

32. Abandon the waterfall life cycle in favor of iterative design

33. Conduct user testing early and often

34. Focus on the users' needs and involve them in the process

35. Come up with good, testable usability goals

36. Hire a graphic designer







Planning



Set a short time limit (4 weeks) on the planning process





Planning Documents



Document One



Defines design goals



Sets the direction for the work



Identifies open problems that need to be researched





Document Two



Project plan for next four months



Describe series of tasks, each no longer than two weeks





Document Three



Plan for user testing





Document Four



Definition of Iterative Process







Prototyping

Problems with Software Prototypes



Software Prototypes take too long to build and change





Testers tend to comment on "fit and finish" issues



Get comments on selection of colors, fonts and buttons



Developers spend time on colors, fonts and buttons





Developers resist changes



Managers resist change



Software Prototypes set false expectations



Single bug in a software prototype can halt a test





Lo-fi or Paper Prototypes

The Kit



White paper



Unlined

Heavy enough to endure repeated testing and revisions





5-by-3-inch cards



Use as construction material

Taking notes





Adhesives



Tape: clear, colored, double-backed, etc.

Glue sticks

Post-It glue

White correction paper





Markers



Colored pens and pencils

Highlighters

Fine and thick markers





Sticky note pads



Acetate sheets



Scissors, X-acto knives, straightedges, Band-Aids



White-out





Build A Paper Prototype



Set a short deadline



The prototype will be done by 4:00 this afternoon



Tomorrow at 9:30 we will demo the prototype



Just get a first pass on all aspects of the prototype



It will be "wrong" so don't spend weeks on it





Construct Models, not illustrations



Build the parts of your prototype so they can be used



The parts need to move around



User will use the model, must see the changes



On early models don't be picky - get ideas down



Later models can look "professional"







Preparing for a Test



Select your users



Know the demographics of your users



Educational background



Knowledge of computers



Typical tasks involved in their job





Can use "surrogate users"



People with same demographics of your users



Undergrads are cheap available labor





May wish to avoid actual customers, employees, friends, and family



Testers should represent the whole range of users



Do at least one in-house test with surrogates and one field test with typical end users





Prepare test scenarios



Practice





Conducting a Test



It takes four people to get the most out of a test



Greeter



Welcomes users

Puts users at ease

Users often worry about:

Flunking the test

Co-workers finding out how they did

Answering the question correctly



Have users fill out forms - experience profile





Facilitator



Runs the test

Gives users instruction

Gives user hand written tasks to perform



Encourage the user to express their thoughts

Elicit the user's thought during the tests



Makes sure test runs on time







Computer



Runs the computer



Moves the model in response to users "actions"





Observer



Takes notes



One observation per index card





The Test



Video tape the test



Before starting the test, explain the process to the user



Debrief the user after the test



During the test, don't:



Give user hints

Laugh, gape, gasp, or say "a-ha"

Don't display any reaction to the user's actions







Evaluate the Results



Go through all the notes taken during the tests



Use post-it notes to put comments on components of prototype that need change
