References Stremler’s remote CVS on Rohan page

Source Code Management Guide, doc/SourceCodeMgmtGuide.pdf in VW 7.x installation

Doc 6, CVS & Store Slide # 2


Concurrent Versions System

Allows multiple users to work on code

Allows access from multiple machines


Windows Version client server GUI client and server


On rohan need /usr/local/bin in your path

This seems to be in the default path

Doc 6, CVS & Store Slide # 3
CVS Books


There are a number of books on CVS

Pragmatic Version Control by Thomas & Hunt has been endorsed by at least one student

Doc 6, CVS & Store Slide # 4


Nice CVS client and Server for Windows


Adds CVS menu options in Windows Explorer

Can use Rohan as remote server

Doc 6, CVS & Store Slide # 5

Accessing CVS Files on Rohan from Off-Campus

Command line Access – CVS over SSH
For complete instructions see the page by Stewart Stremler:

First set CVS_RSH environment variable

It points to the location of cvs

On my machine I do this with:

setenv CVS_RSH /usr/bin/ssh
Note the path
Second set the CVSROOT environment variable

The general format is:


For example I use:

setenv CVSROOT

Doc 6, CVS & Store Slide # 6
Remote Access to Rohan CVS using TortoiseCVS

After you have installed TortoiseCVS on a windows machine, when you right click on an Windows Explorer window the popup menu will contain a CVS items. If you select the Checkout item you will get the TortoiseCVS Checkout Module window. Enter the following:

For the Protocol select “Secure shell(:ext)
For the server enter the name of the machine with the CVS root. For rohan enter

For the Repository folder enter the absolute path to the directory containing your CVS root on the server machine

For the User name enter your user name on the server machine.

If your CVS root is set up on the server machine this will allow you to check out files from the server machine. Adding and updating files is also easy to do. One problem is that you will be asked your password each time you make a request of the server. To avoid this read the TortoiseCVS FAQ on how to avoid entering your password every request with SSH at:

For more information on using TortoiseCVS read the tutorial that comes with TortoiseCVS download.

Doc 6, CVS & Store Slide # 7
Example of Using CVS

All examples assume you are using Unix

One Time Only

To store your own files you need a cvs root (repository)

This is created once


   cvs -d cvsLocation init

   cvs -d /home/ma/whitney/cvsRoot init

Doc 6, CVS & Store Slide # 8
Where is the Repository?

cvs command need to know the location of the repository

You can
Add this path to each command or
Set the CVSROOT environment variable

Example of setting Environment variable

For tcsh or csh in .cshrc or .login file add a line

   setenv CVSROOT  /home/ma/whitney/cvsRoot
For other shells you may need to use:

   set CVSROOT='/home/ma/whitney/cvsRoot'

Doc 6, CVS & Store Slide # 9

Starting a New Project

Create the directory structure for the project

rohan-> mkdir xmlrpcClient
rohan-> cd xmlrpcClient/
rohan-> cvs import -m "start assn1" cs580/xmlrpcClient yoyo start
No conflicts created by this import
Import Command
Initial message for the project

where the files are stored in the repository

means nothing, can be anything but must be here
this is the start of the project

After this command the directory is stored in the repository

Doc 6, CVS & Store Slide # 10

Creating a shortcut or Module

Remembering cs580/xmlrpcClient is going to be hard so create a short cut or module

rohan-> cd ..
rohan-> cvs checkout CVSROOT/modules
rohan-> cd CVSROOT/
rohan-> ls
CVS/      modules
rohan 40-> vi modules
Add the followng line at the end the file

   assn1 cs580/xmlrpcClient
Now to commit the changes

rohan-> cvs commit -m "Added assn1 module" modules
Checking in modules;
/home/ma/whitney/cvsRoot/CVSROOT/modules,v  <--  modules
new revision: 1.6; previous revision: 1.5
cvs commit: Rebuilding administrative file database
cvs commit updates the repository with all changes in the current project

Doc 6, CVS & Store Slide # 11
Now to remove the module files

rohan-> cd ..
rohan-> cvs release -d CVSROOT/
You have [0] altered files in this repository.
Are you sure you want to release (and delete) directory ´CVSROOT/': y
cvs release –d directoryName

Doc 6, CVS & Store Slide # 12
Using our assn1 ProjectGetting the Files

rohan-> cvs checkout assn1
rohan-> cd assn1
rohan-> ls
cvs checkout moduleName

Makes a local copy of the files in the give module

Doc 6, CVS & Store Slide # 13
Adding a new File

Create a file called using an editor

rohan-> cvs add -m "main client file"
rohan-> cvs commit -m "added main"
cvs commit: Examining .
RCS file: /home/ma/whitney/cvsRoot/cs580/xmlrpcClient/,v
Checking in;
/home/ma/whitney/cvsRoot/cs580/xmlrpcClient/,v  <--
initial revision: 1.1
cvs add
Tells cvs about the file

cvs commit
Commits all changes in the current project to repository
Can add file name to commit only a single file

Doc 6, CVS & Store Slide # 14

Making Changes

We can now make more changes to the file

At anytime we can commit the files

rohan-> cvs commit -m "added foobar method"
cvs commit: Examining .
Checking in;
/home/ma/whitney/cvsRoot/cs580/xmlrpcClient/,v  <--
new revision: 1.2; previous revision: 1.1

Doc 6, CVS & Store Slide # 15
Getting the log of Changes

We can view the log of changes made to the project

rohan-> cvs log
cvs log: Logging .
RCS file: /home/ma/whitney/cvsRoot/cs580/xmlrpcClient/,v
Working file:
head: 1.2
locks: strict
access list:
symbolic names:
keyword substitution: kv
total revisions: 2;     selected revisions: 2
main client file
revision 1.2
date: 2002/09/12 22:45:17;  author: whitney;  state: Exp;  lines: +2 -0
added foobar method
revision 1.1
date: 2002/09/12 22:44:16;  author: whitney;  state: Exp;
added main

Doc 6, CVS & Store Slide # 16
Comparing Files

rohan-> cvs diff -r 1.1 -r 1.2
RCS file: /home/ma/whitney/cvsRoot/cs580/xmlrpcClient/,v
retrieving revision 1.1
retrieving revision 1.2
diff -r1.1 -r1.2
> // main
> // more code

The diff command shows the difference between versions a file

Doc 6, CVS & Store Slide # 17

Deleting the local Copy

We can even delete the local copy of the files

This tends to make novices nervous

rohan-> cd ..
rohan-> cvs release -d assn1/
You have [0] altered files in this repository.
Are you sure you want to release (and delete) directory ´assn1/': y

Doc 6, CVS & Store Slide # 18
What is the Point?

So far we have done a lot of work without any benefit

We can get back previous versions!

The -D flag for checkout

We can tell cvs to give us the lasted version of a project before a given time

rohan-> cvs checkout -D yesterday assn1
rohan-> cvs checkout -D "2002-9-11 20:00" assn1
rohan-> cvs checkout -D "2002-9-11" assn1
rohan-> cvs checkout -d "1 hour ago" assn1
The –r flag

We can checkout by version number

rohan-> cvs checkout -r 1.1 assn1

Doc 6, CVS & Store Slide # 19
More Features

cvs has more features

Read the manual to find out about

Doc 6, CVS & Store Slide # 20

Using Store

Loading Store into an Image

In VW 7.2 Store is already loaded so this step is not needed.

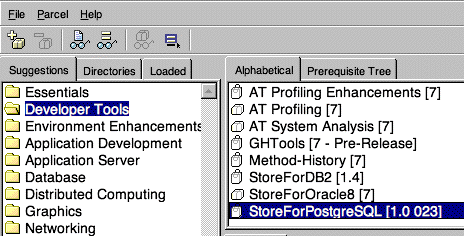

Load the StoreForPostgreSQL parcel

Use the Parcel manager

The “Load Parcel” icon is the left more icon on the icon bar.

Doc 6, CVS & Store Slide # 21

Packages, Parcels & Categories

Open a System browser

In Launcher in Browse menu select “System Browser”
Or select the “System Browsers” icon – the third icon from the left in the Launcher
System browser now supports three ways to organized code:

In the System browser use the “Browser” menu to switch between viewing the code via these methods

Doc 6, CVS & Store Slide # 22

A collection of classes

Use to view any class in the system

Doc 6, CVS & Store Slide # 23

A package can contain:

Development time grouping of related code

Packages can be stored in a repository

Can be grouped into bundles for large projects

Doc 6, CVS & Store Slide # 24

File based version of a Package

Runtime grouping of related code

Contains binary for fast loading

Can be created without Smalltalk source if you wish to hide source from users

Doc 6, CVS & Store Slide # 25

Using Packages

Creating a Package

Open a System browser and set it to view packages

In the System Browser “Browser” menu select “Package” item

In the System Browser “Package” menu select “New” and the submenu item “Package”

You will be prompted for a package name

For this document I will use the name “StoreLectureExamples”

With your new package selected in the System Browser “Package” menu select “Make Current”

This will cause any change you make anywhere in the system to be part of your package when you are dealing with Categories

Now you can set the browser to show categories until you are ready to save your code to the repository

Doc 6, CVS & Store Slide # 26
Adding Code to a Package


We will

Doc 6, CVS & Store Slide # 27
Changing an Existing Class

Go to the Integer class

Type “Integer” in the find box and hit return

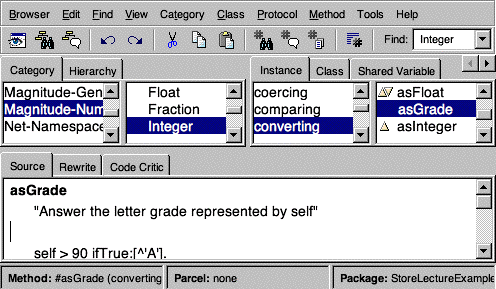

Add the asGrade method to the converting category

   "Answer the letter grade represented by self"
   self > 90 ifTrue:[^'A'].
   self > 80 ifTrue:[^'B'].
   self > 70 ifTrue:[^'C'].
   self > 60 ifTrue:[^'D'].

In the bottom of the browser you should see that method is in your package. See below.

Doc 6, CVS & Store Slide # 28

Browser Level Source Control

The System browser provides some source control without dealing with Store

To see this functionality

Now click on the “Undo” icon to undo the last change

You can rollback all the changes to asGrade with the undo icon

Use the redo icon to redo each change

To see the history of all changes to asGrade

While asGrade is selected, in the browser “Method” menu select “Browse Versions”

Doc 6, CVS & Store Slide # 29
Creating a New Class

Create a new category for your new class

In the Browser “Category” menu select the “New” menu

Then create a new class

For the notes & class demo I will use the following class.

Smalltalk defineClass: #BankAccount
   superclass: #{Core.Object}
   indexedType: #none
   private: false
   instanceVariableNames: 'balance '
   classInstanceVariableNames: ''
   imports: ''
   category: 'Store-LectureNotes'
BankAccount class methodsFor: 'instance creation'
   ^super new initialize
BankAccount methodsFor: 'accessing'
deposit: aNumber
   balance := balance + aNumber
withdrawl: aNumber
   balance := balance - aNumber
   balance :=0

Doc 6, CVS & Store Slide # 30

Connecting to the CS580 Store Repository

Before saving a package we must connect to the repository

To connect to the CS580 repository on your machine needs a connection to the Internet

In the Launcher Store menu select the “Connect to Repository” item

Doc 6, CVS & Store Slide # 31
First Time Connection

In the “Connect to Database” window:

For Interface select PostgreSQLEXDIConnection
For Environment type rugby.sdsu.edu_cs580
Contact me for a username and password
Keep BERN as owner of the table.

If you click on the “Save...” button you can give the settings a name to make it easier to connect later.

Now click on the “OK” button to connect to the repository

If all went well you are now connected to the repository. If you do not get any errors you will be connected.

Doc 6, CVS & Store Slide # 32
Viewing Existing Items in the Repository

Once you are connected to a repository you can view its contents

In the Launcher’s “Store” menu select “Published Items”

The resulting window will show you the contents of the repository. When you select a package you will see the different versions of the package. When you select version you see the comment for that version. When a version is selected you can either right click in the upper right window or use the File menu to load that version into your image.

Doc 6, CVS & Store Slide # 33
Putting a Package into the Repository

To put a package into a repository

There are a number of other useful things one can do like merge different versions of a package. However, you should know enough to read the manual to find out how to do that.

Copyright ©, All rights reserved.
2004 SDSU & Roger Whitney, 5500 Campanile Drive, San Diego, CA 92182-7700 USA.
OpenContent license defines the copyright on this document.

Previous    visitors since 03-Feb-04    Next
